ALIENTEK DP100 – compact DC power supply, 30 V / 5 A / 100 W

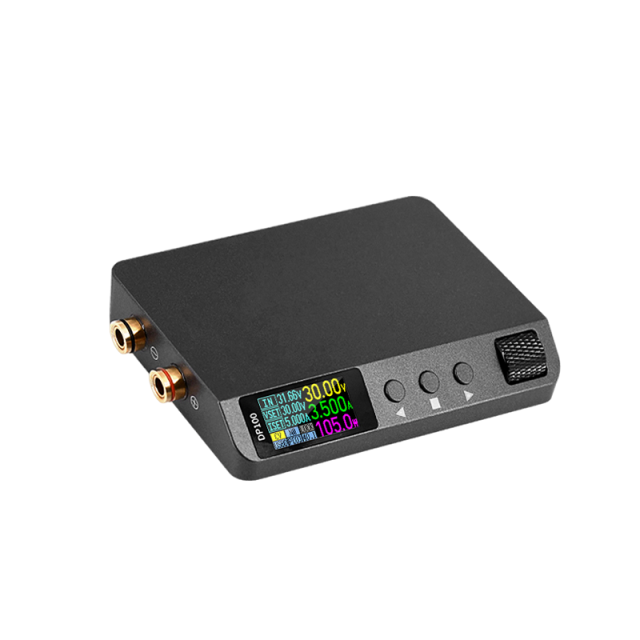

Precise power for electronics projects – even when you're on the go! The ALIENTEK DP100 is a compact, digitally controlled DC power supply for prototyping, troubleshooting, and circuit testing.

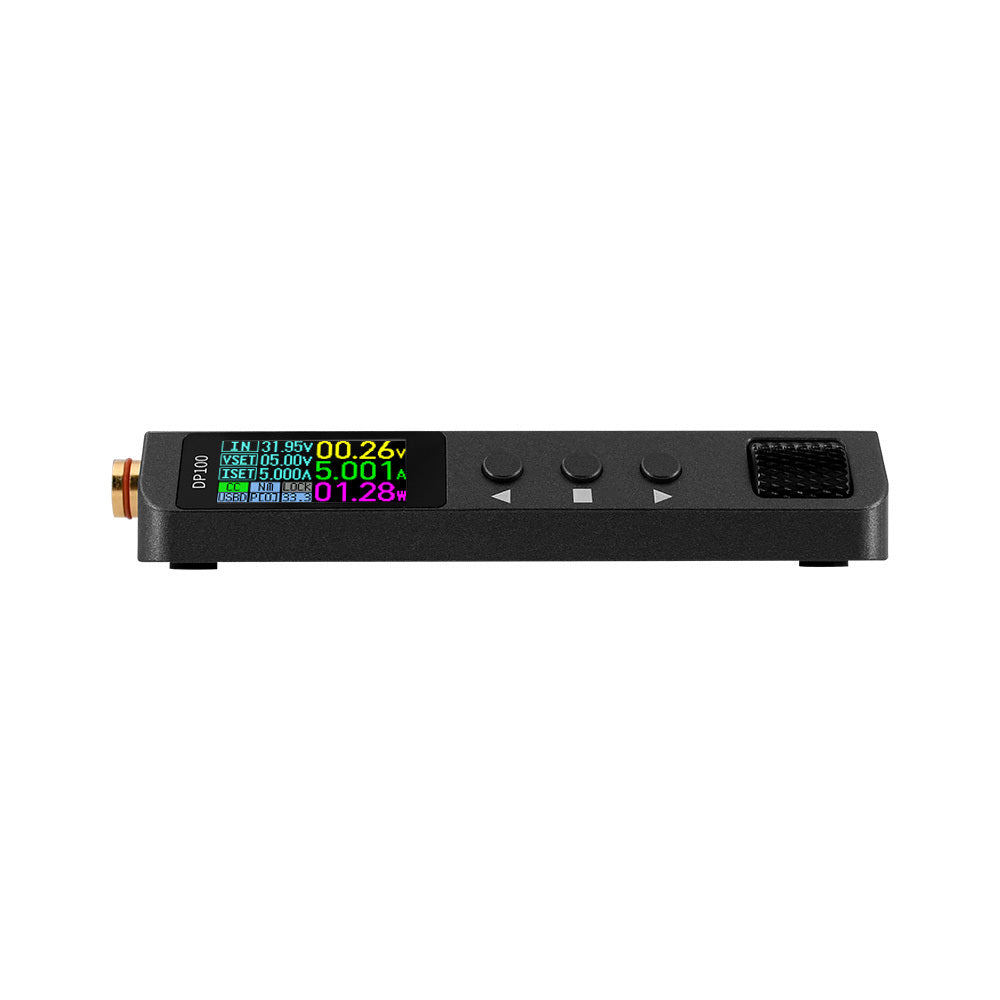

You can set the output voltage from 0 to 30 V and the current limit from 0 to 5 A. The power supply operates in constant voltage (CV) or constant current (CC) mode, and the small IPS display shows voltage, current, power, and operating status. Buttons and a control knob make it easy to adjust the settings.

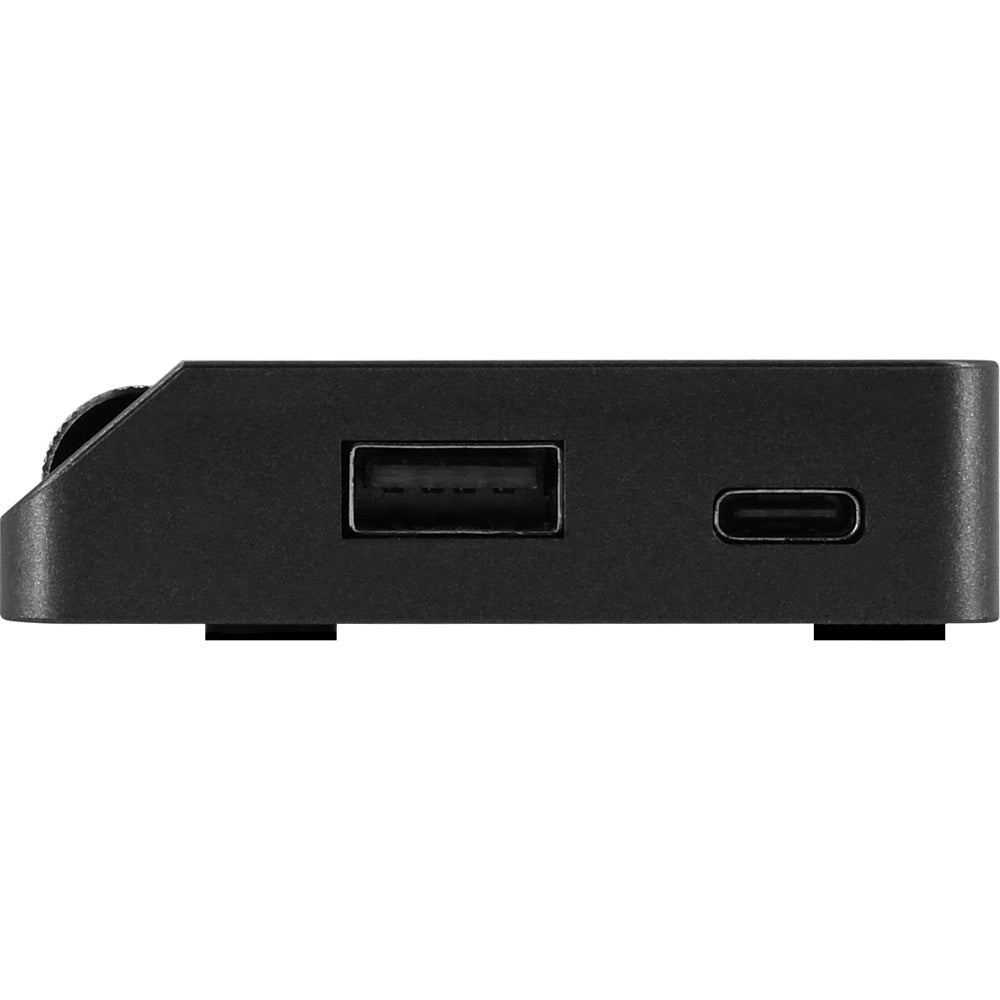

Save up to 10 sets of settings for tasks you repeat. USB-A is used for PC communication and firmware updates and also supports operation with a compatible USB mouse.
The DP100 is a step-down power supply: The input voltage must be higher than the desired output voltage. It requires an external power source via USB-C, such as a compatible PD/QC charger or power bank. The available output power depends on the power source and cable.
The maximum output power is 100 W. 30 V and 5 A cannot therefore be delivered simultaneously. Protection features include overvoltage, overcurrent, overpower, overtemperature, reverse connection, and undervoltage. Always check the voltage, current limit, and polarity before connecting.
Technical specifications
| Manufacturer / model | ALIENTEK DP100 |
| Input voltage | 5–32 V DC |
| Power input | USB-C; compatible PD/QC power source |
| Output voltage | 0–30 V DC, adjustable |
| Output current | 0–5 A, adjustable current limit |
| Maximum output power | 100 W |
| Regulation | Constant voltage (CV) / constant current (CC) |
| Voltage resolution | 0.01 V |
| Current resolution | 0.001 A |
| Output jack | 4 mm banana jack |
| Display | 0.96" IPS, 160 × 80 pixels |
| Preset groups | 10 |
| Communication | USB-A for PC and firmware updates |
| USB mouse | Supported in USB host mode |
| Protection | OVP / OCP / OPP / OTP / REP / UVP |
| Voltage ripple | ≤ 2 mVrms, 10 mVp-p |
| Dimensions | 100.4 × 62.2 × 17.2 mm |
| Unit weight | 95 g, without accessories and packaging |
| Operating temperature | 0–40 °C |
| Conversion type | Step-down (buck); input must be higher than output |
What's in the box?
- 1 × ALIENTEK DP100 DC power supply
- 1 × zippered storage bag
- 1 × USB-C cable
The package contents follow the linked product version. An external power source is required; a charger is not included in this package list.
