Beskrivelse

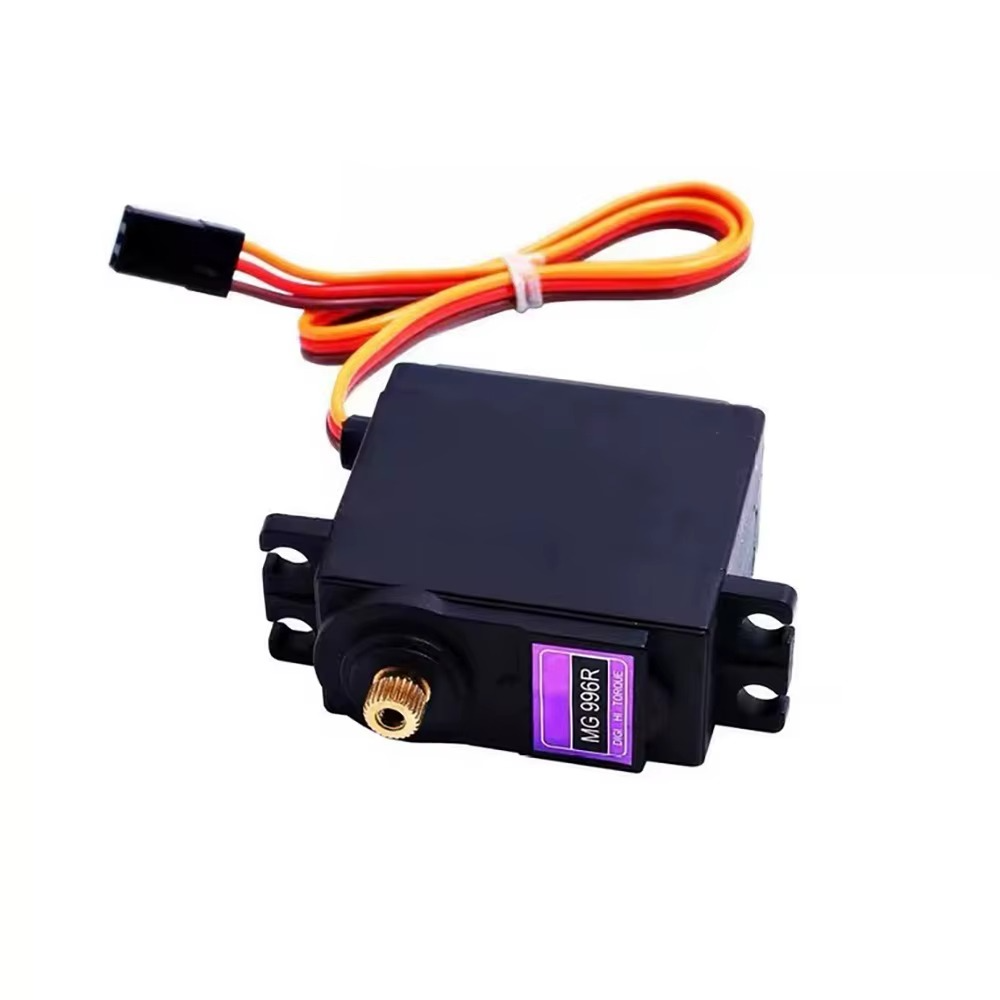

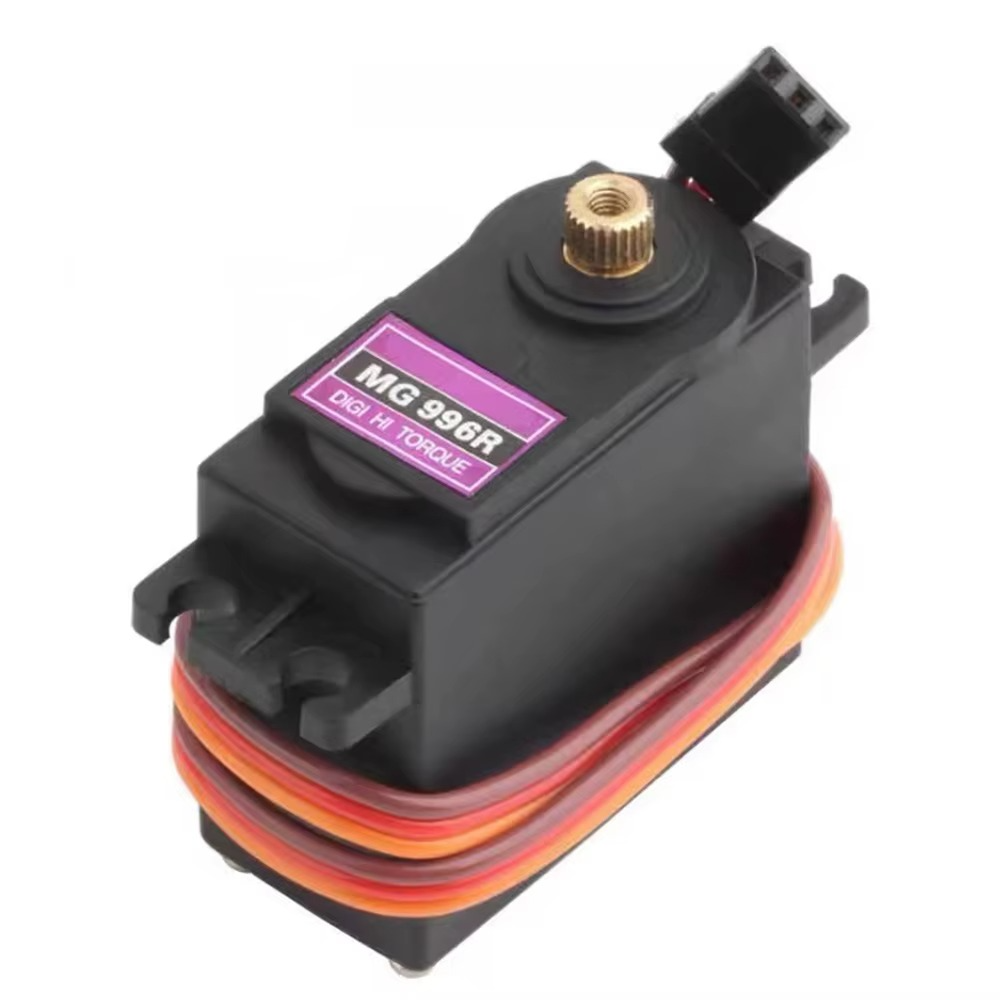

Meet the MG996R , a powerful metal-geared servo where precision meets raw power. Whether you're controlling a robotic arm, an RC vehicle, or building a waving mech, this servo is up to the task.
What makes it special?
-
High torque in a compact size : With up to 11 kg·cm at 6 V, this servo has the power to lift and move things without taking up much space.
-
Metal gears & double bearings : Robust and reliable, designed for heavy duty use and long life.
-
Fast & smooth movement : Can rotate 0.14 s per 60° at 6 V , so your projects respond lightning fast.
-
Wide voltage range : Operates on 4.8V to 7.2V , flexible for most hobby projects.
-
Durable & precise control : New PCB and IC reduce deadband and ensure smoother positioning.
Best uses
-
Robotics – Lift, tilt, wave or grip with precision and strength.
-
RC & DIY Vehicles – For steering, throttle or anything that requires reliable torque.
-
Motion Control – From camera pans to animatronic joints, handle dynamic movements with ease.
-
Learning Projects – Explore PWM, torque, power consumption, and mechanical feedback with a real-world component.
Setup resources
-
Tutorials for using MG996R with Arduino, ESP32 or Raspberry Pi
-
Datasheet (PDF) : For full pinouts, performance graphs and connection diagrams
Technical specifications – quick overview
| Specification | Details |
|---|---|
| Model | MG996R High-Torque Metal-Gear Servo |
| Voltage range | 4.8 V – 7.2 V |
| Stall Torque | 9.4 kg cm @ 4.8 V • 11 kg cm @ 6 V |
| Speed | 0.17 s / 60° @ 4.8 V • 0.14 s / 60° @ 6 V |
| Rotation range | Ca. 120–180° (center ±60°) |
| Power consumption | ~500 mA (running) • 2.5 A (stall, 6 V) |
| Deadband width | ~5 µs |
| Design | Metal gears with double ball bearings |
| Dimensions | ~40,7 × 19,7 × 42,9 mm |
| Weight | ~55 g |
| Temperature range | 0°C to 55°C |
Indhold i pakken

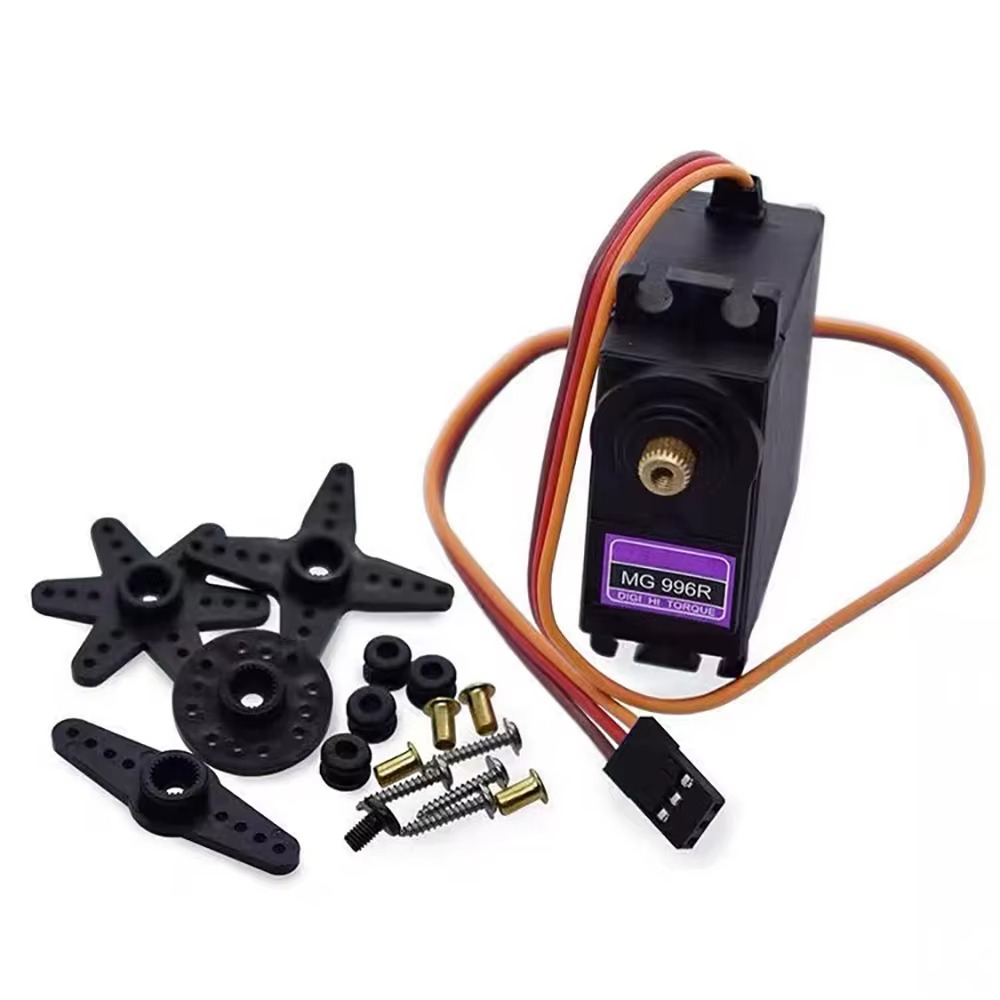

✔ 1 stk. MG996R Servo Motor (180 Degrees)
